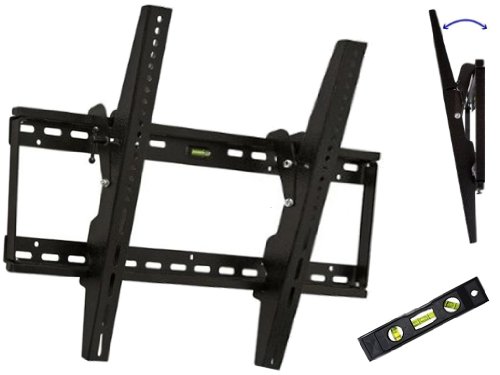

Cheetah Mounts APTMM2B Flat Screen TV Wall Mount Bracket, uses Universal Tilt Mount 32-55" - Plasma, LED, LCD TV Wall Mounts Mounting Brackets |
| Brand: Cheetah
Category: CE
List Price: $99.99
Buy New: $15.99
as of 9/4/2010 12:32 CDT details
You Save: $84.00 (84%)
New (6) from $15.99
Rating:  331 reviews
Shipping Weight (lbs): 6
Dimensions (in): 31.3 x 10 x 2.4
Hole Pattern Coverage: 27.7" Horizontal by 19" Vertical or VESA 100x100, 200x200 , 300x300 , 400x400 and 400x600
Unit Weight: Net: 8LBS Gross: 9 LBS
Unit Materials: Arms, Wall Plate and TV Plate: 100% High Grade Steel
Tilt Range: 15° Downward
Wall Plate Screw Slots: 1.5" Wide by 0.5" Apart
Profile From Wall: 1.9"
Wall Plate Dimensions: 30"H x 9.5"V (dual stud installation)
Openings for Cable Pass-Through (Cable Management): 29.5"H x 5.5"
TV Arm Dimensions: 20" by 1.75"
MPN: APTMM2B
Model: APTMM2B Tilt Wall Mount
UPC: 068888903776
EAN: 0068888903776
ASIN: B0012S4APK
Availability: Usually ships in 1-2 business days
| |
| |
| Features:
| • | Universal Design Fits Most 32-55 inch TVs | | • | Flush 1.9" Profile | | • | Tilt Range: 15° Downward | | • | Supports up to 165LBS | | • | 6" 3-Axis Magnetic Bubble Level Included |
|
| Similar Items:
| |
| Editorial Reviews:
Product Description
The APTMM2 flat tilt mount features a slim 1.9" profile from the wall to the back of your
display. Additionally it has 0-15 degrees of tilt. The APTMM2 mount is constructed with 8LBS of 100% High Grade Steel providing a sturdy and reliable mount. The APTMM2's solid wall plate allows for quick and easy installation and will support a wide variety of stud applications up to 28" apart. The APTMM2 mount will fit the majority of LCD and Plasma Displays up to 55". Most LCD and Plasma displays 55" and smaller conforms to the VESA Standards
and this mount will support most odd sized hole patterns that do not conform to the VESA Standards. For more information on what exact hole patterns this mount will fit please see the Hole Pattern Coverage in specifications section.
|
| Customer Reviews:
Showing reviews 1-5 of 331
 Excellent for the price, kind of poor instructions September 4, 2010
A. Hindin (Minneapolis, MN USA)
I used this to mount a 42inch Samsung. The rack itself is good, and an excellent value. The directions are kind of shoddy, the pictures are too small to be of much use. I'll still give it 5 stars though because of the excellent quality/price balance.
Solid and easy install September 3, 2010
Jacx (Illinois USA)
Cheetah Mounts APTMM2B Flat Screen TV Wall Mount Bracket, uses Universal Tilt Mount 32-55" - Plasma, LED, LCD TV Wall Mounts Mounting Brackets by Cheetah Mounts
I ordered this after seeing all the great reviews on it. It was so cheap at thirty bucks I said why not. It arrived well packaged and a complete kit with a level and a separate bubble level attached, all the screws you would need for cement or wood. Easy to follow directions. Solid metal and has room for tweaking if you want to slide it left or right a bit on the wall, two screws that hold the tv to the bracket so it can't be lifted off by accident.
Like others have said, it makes the tv look like a framed photo. Very nice.
I installed a 55" led tv no problems.
A bargain at twice the price August 25, 2010
AR
I purchased this mount for a 46" LCD and am very happy with my choice. The minimalist design of the mount allows it to be light yet very sturdy. I mounted it to wood studs and found that the supplied wood screws, while adequate, weren't quite long enough for a paranoid person like me, so I used 3" 3/8 wood bolts and now I could hang my whole family on the mount with no trouble. Construction of the mount is easy and I found the instructions to be thorough whether mounting to wood/metal studs or masonry. If you have even a drop of mechanical skill you will be able to install this mount. You will need a drill and basic bit set to make pilot holes for the screws and preferably a stud finder (if you aren't quite sure where they're at) but other than that a basic tool set will be enough from start to finish. Lastly, I found the included little magnetic level to be very handy and it went straight into my toolbox when I was done. Once the TV was hung, adjustment of it's final location was easy before locking it down. When I'm ready to hang another TV I will definitely be getting another one of these.
So Easy to Install August 23, 2010
William G. Purcell (Snyder, NY USA)
I was very pleased with this wall mount for my 42 inch Plasma. It was much more cost effective than big box store alternatives. I was most happy at how easy it was to install. This mount was absolutely designed for those needing an easy install. I debated hiring someone to do this job and now that it is on my wall, I am so glad I did it myself... Great product...easy to install.
Wonderful August 23, 2010
Jothnathan Gambrel (CORBIN, KY, US)
Item as described. Well built and don't have any doubts this will hold my 32" on the wall. I would be totally comfortable putting my 46" on this. Hardwar in individually labled pakages. Super easy install with a little bit ok knowledge and a stud finder.
Showing reviews 1-5 of 331
|
|
|
